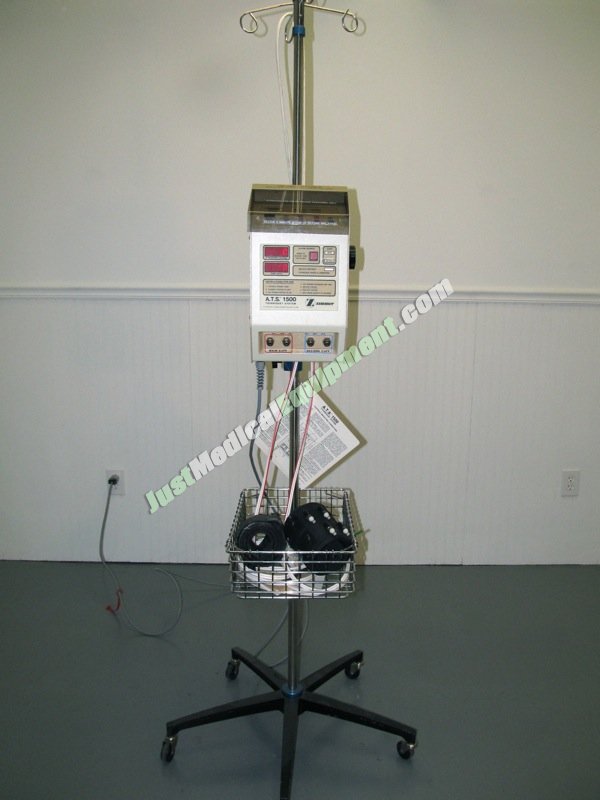

Zimmer ATS 1500 Tourniquet System

The Zimmer ATS 1500 is an automatic tourniquet which has been found useful in producing a bloodless operating field in a surgical procedure involving extremities. It is indicated to temporally occlude blood flow in patient's extremities during a surgical procedure on those extremities.

Specifications

Line Voltage Range: 105-130 VAC, 50/60 Hz

Line Current: 485 mA RMS Max., 300 mA RMS nominal

Input Power: 58 W max, 36 W nominal

Battery Type: Rechargeable, sealed lead acid, 12 VDC, 2.3 AH

Battery Discharge Time: Unit will operate on battery power for 15 minutes (minimum with fully charged battery)

Battery Recharge Time: 24 hours maximum

Power Cord: Type SJT, AWG 18, 13 ft. 2 in.

Power Plug: Hospital grade, 3 prong straight blade, 15A

Line Protection: 0.5A, 250V, 5 x 20 mm SLO-BLO fuse

Cuff Pressure Range: 50-475 mmHg

Pressure Accuracy: +/- 5 mmHg (50-475 mmHg)

Pressure Regulation: +/- 6 mm of set point (10 second average under not transient conditions without external leaks)

Maximum Pressure: 475 mmHg (nominal operation), 600 mmHg (internally limited)

Time Alarm Set Ranges: 0-240 minutes; 1-minute increments

Timer Accuracy: 0.25% +/- 1 second

Internal Diagnostics: Program, memory, watchdog timer, transducer calibration, improper valve actuation

Size: 16.13"H x 8.75"W x 7.1"D Weight: 19.8 lbs.

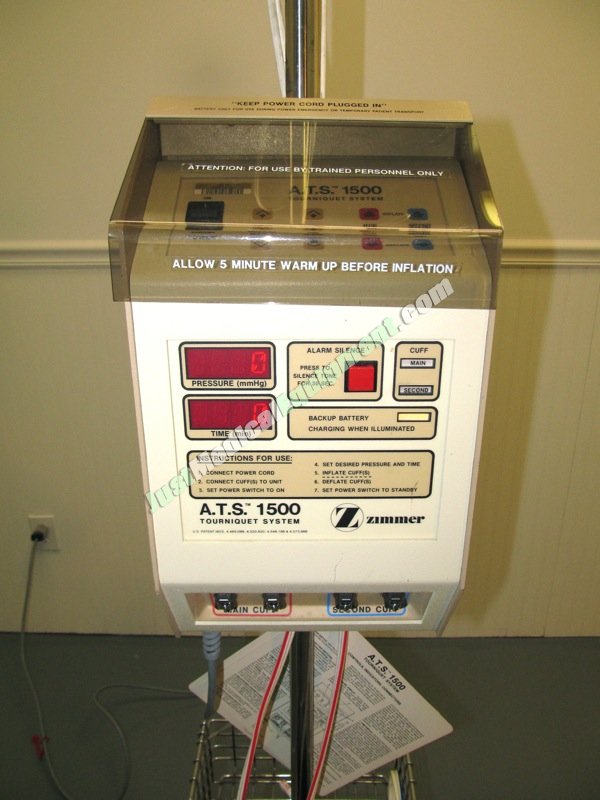

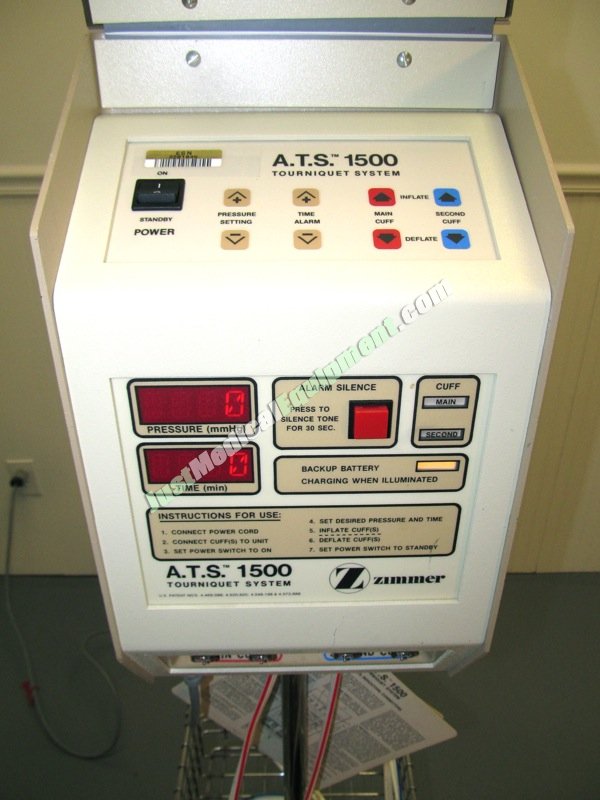

Controls: On/standby switch, pressure touch-switches, time touch-switches, cuff touch-switches, alarm silence switches

Displays: Pressure and time
